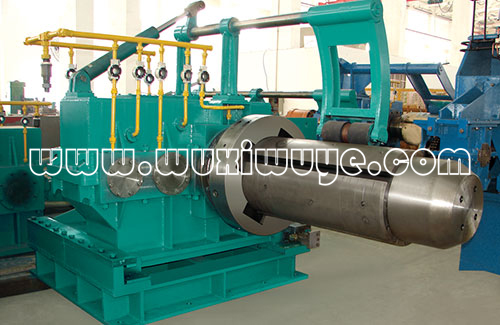

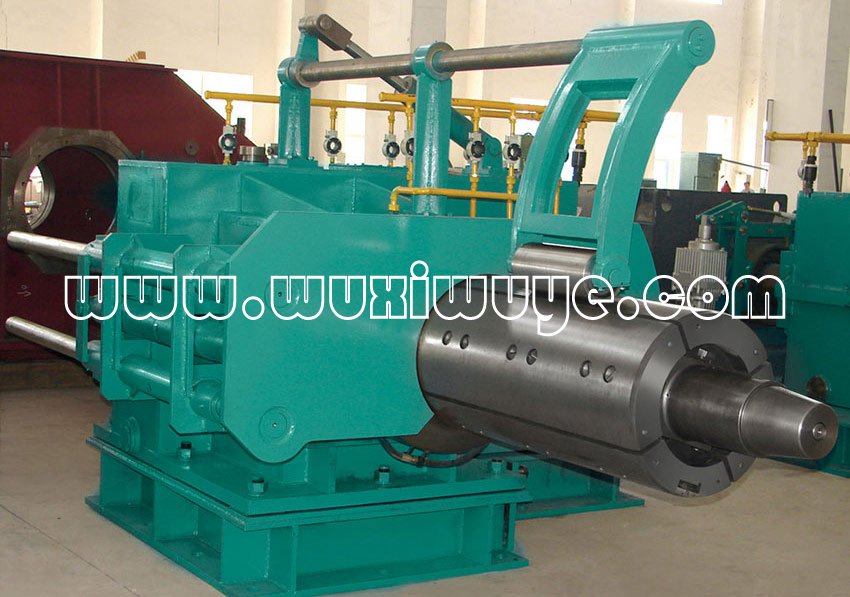

Hydraulic Coiler

1050 Hydraulic Quadrangular Cone Expansion Coiler

1050 Hydraulic 4-Segment expansion Coiler

1450 Hydraulic 4-Segment expansion Coiler

1450 Seamless Coiler

1450 Floating decoiler


1200 Seamless floating Coiler

500 Double heads coiler for copper strip


Technical parameters


No. Spec.of coiler's head(mm) Expansion/shrinking amount(mm) Coiler jaw model
1 φ400×500-550 18 no.jaw
2 φ508×650-1050 14-18 hydraulic jaw 0-8mm
3 φ508×1050-1450 18-20 no clearance
4 φ610×1050-1450 15-20 hydraulic jaw 0-8mm
