Wuxi Wuye company make 850mm double-uncoiler & double-coiler tandem mill

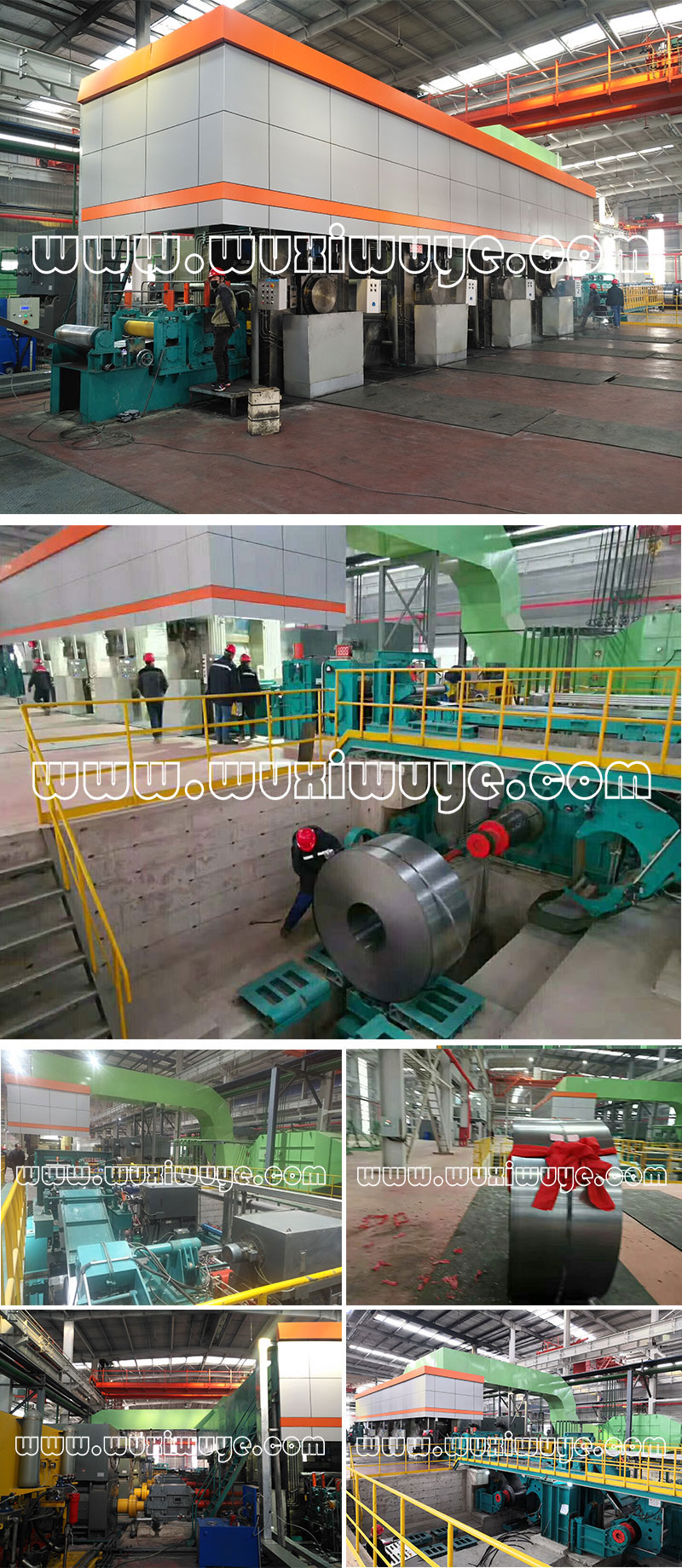

Warmly congratulate the successful installation and commissioning of Wuxi Wuye company make 850mm double-uncoiler & double-coiler tandem mill.


Model: 850mm four-stand continuous rolling mill
1st-3rd housing: Φ230X850/Φ720X820mm
4th housing: Φ230X850/Φ260X850mm/Φ720X820mm

1. raw material
Material status material Max coil weight OD of material ID of  material thickness Width
hot rolled steel coil after pickling and side shearing carbon steel 15T φ2000  φ508 2.5-3.5mm 600-780mm
2.main technical parameters
Max rolling force rolling speed rolling method
≤800T ≤480m/min(4th stand discharge speed ) hydraulic screw down
